Exploration Projects
Mix Use
Program - Revit
In this project the exploration of a mix use building was recreating using plans found on line by Tim Johnson Architect Inc. The following drawings show only the massing of the building along with sections and elevations.
ISONOMETRIC VIEW OF PROJECT
SITE PLAN
1st FLOOR PLAN
2nd - 4th FLOOR PLAN
ROOF PLAN
LONG SECTION

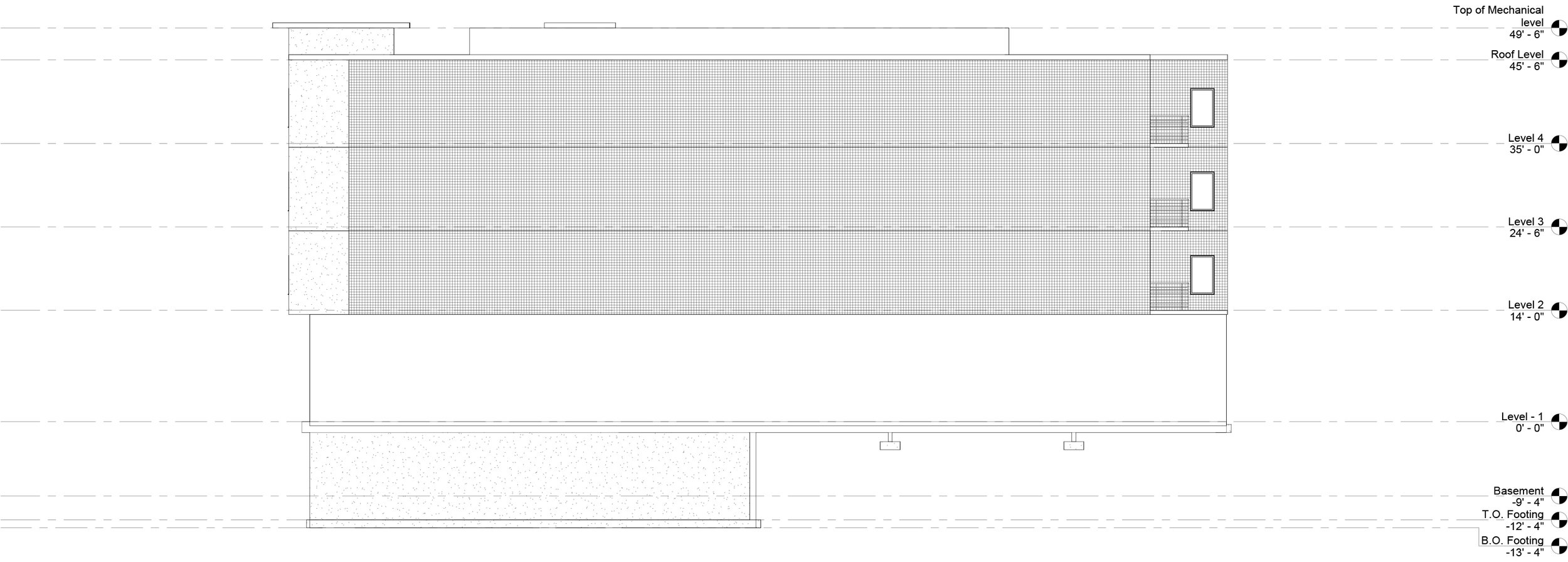

NORTH ELEVATION
SOUTH ELEVATION
WEST ELEVATION

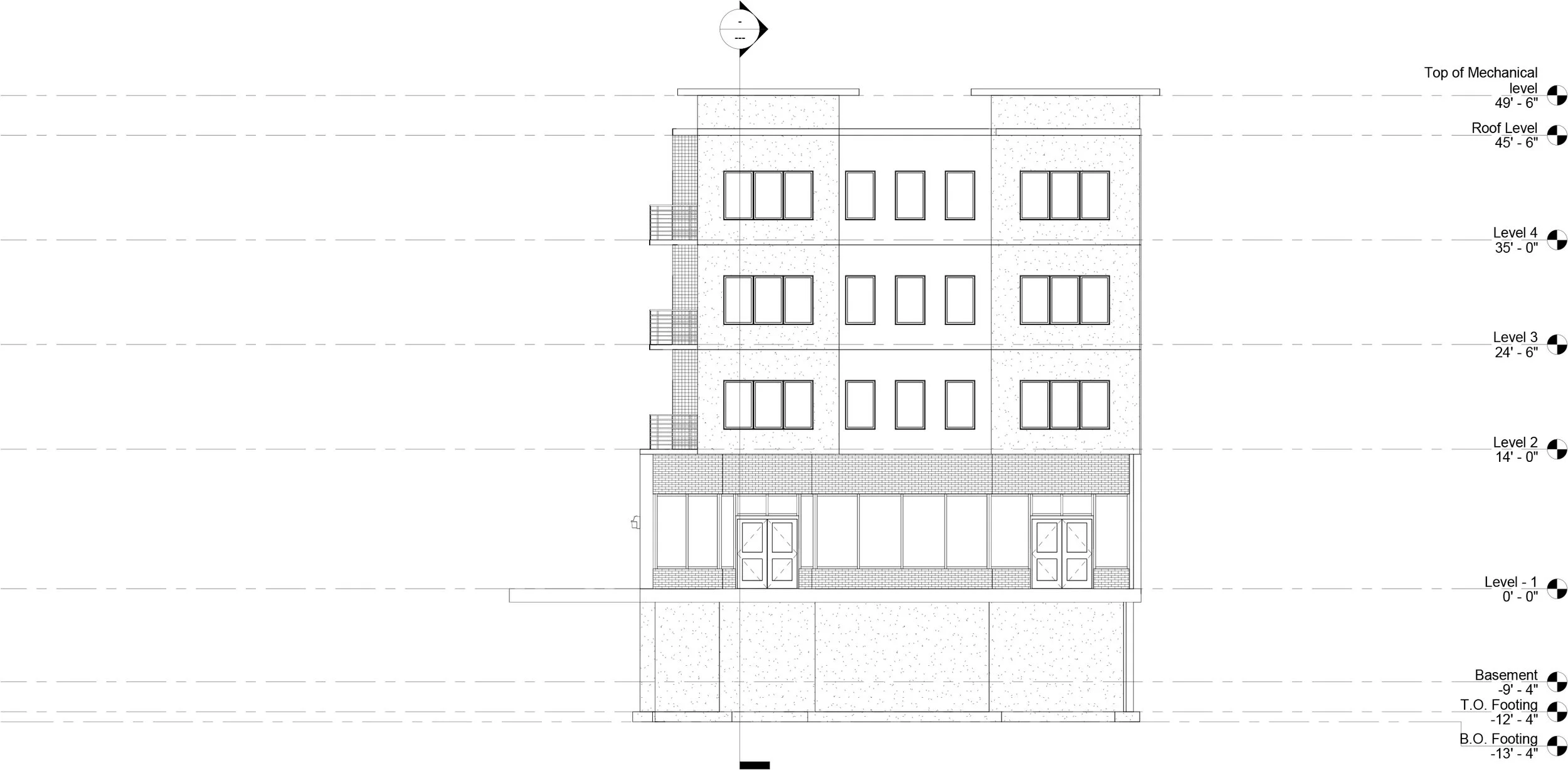

EAST ELEVATION
Grocery Store
Program - Sketchup and Revit
By using plan found online by David M. Simpson Architect. The following 3D models were created using Sketchup.

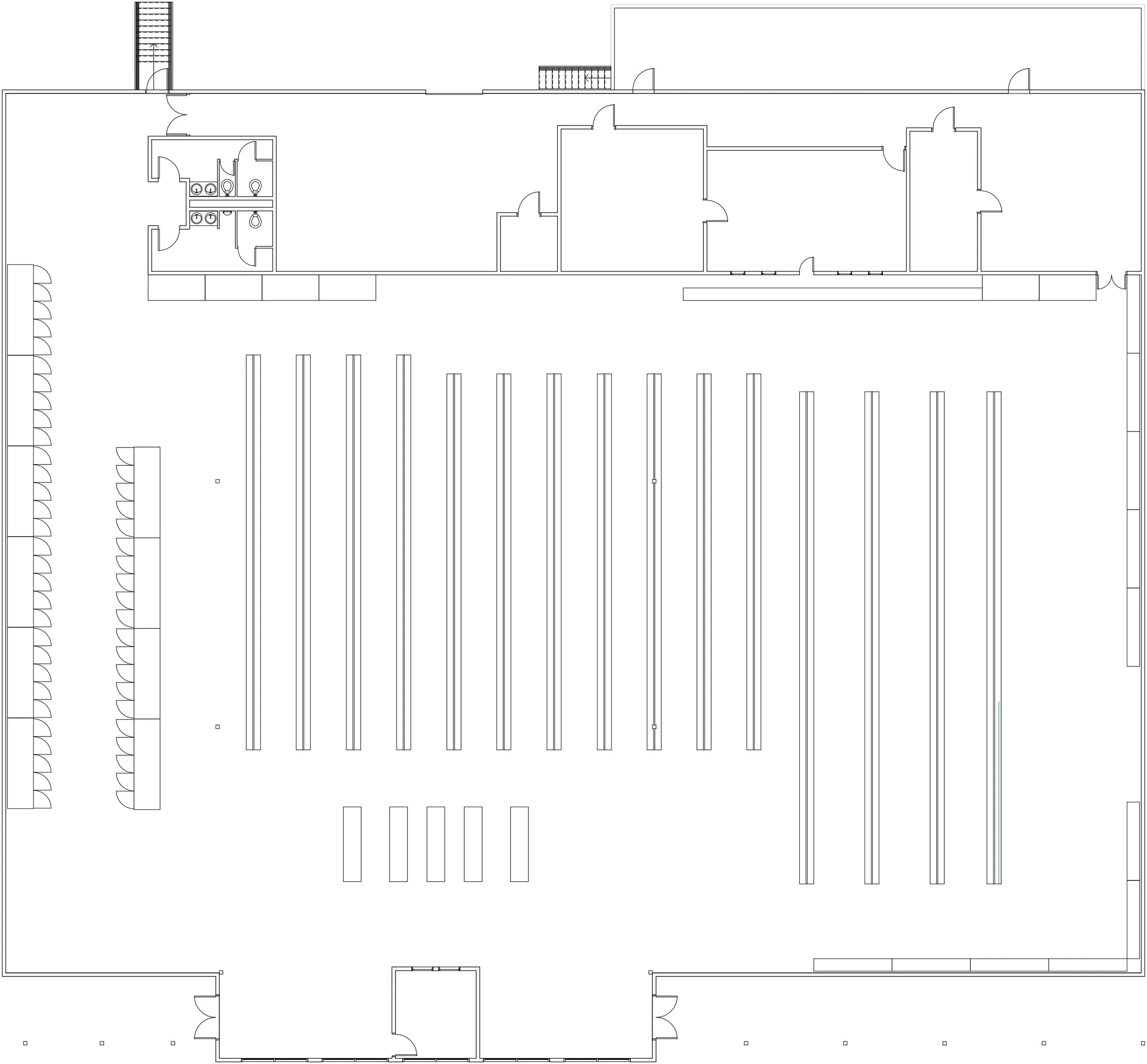

FLOOR PLAN
3D MODEL
SIDE VIEW

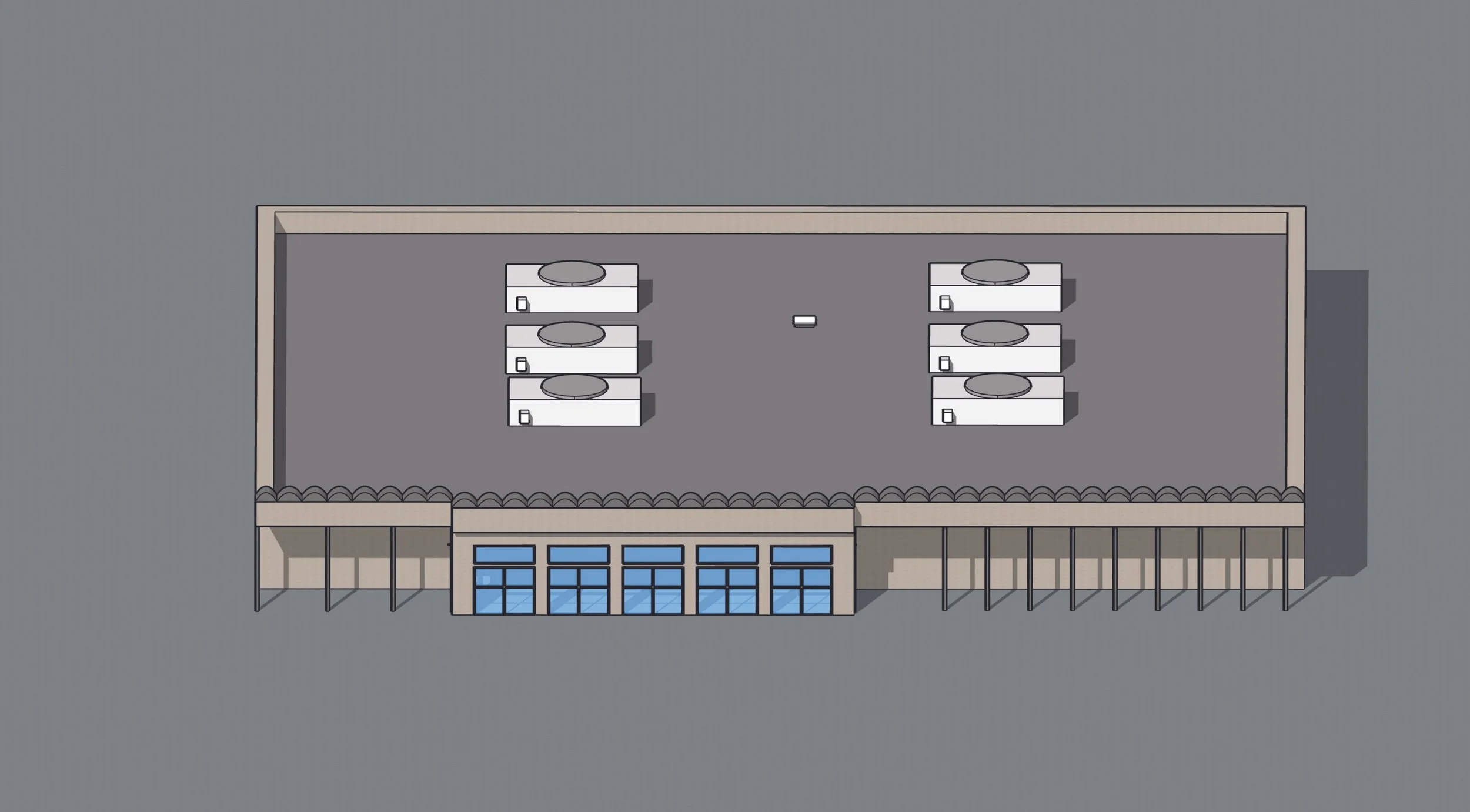

TOP VIEW
