ART BLUE PRINTS AND DRAFTING
Position - Architectural designer
Programs - AutoCAD and Adobe Acrobat
The scope of work was to connect two retaining walls together. In collaboration with an structural engineer and communication with city officials to coordinate the connection of both retaining walls.
SITE PLAN
SLOPE DIAGRAM

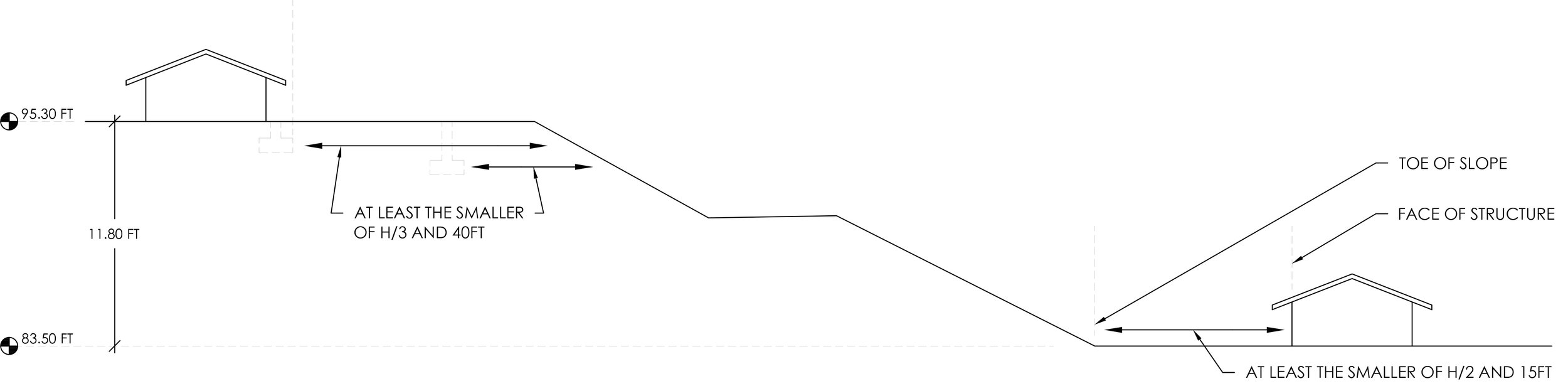

During the conduction of research of city and zoning regulations. The diagram provides information that allows to informed the retaining wall design.
DETAIL
In following the sketches provide by the engineer the above detail was generated.
